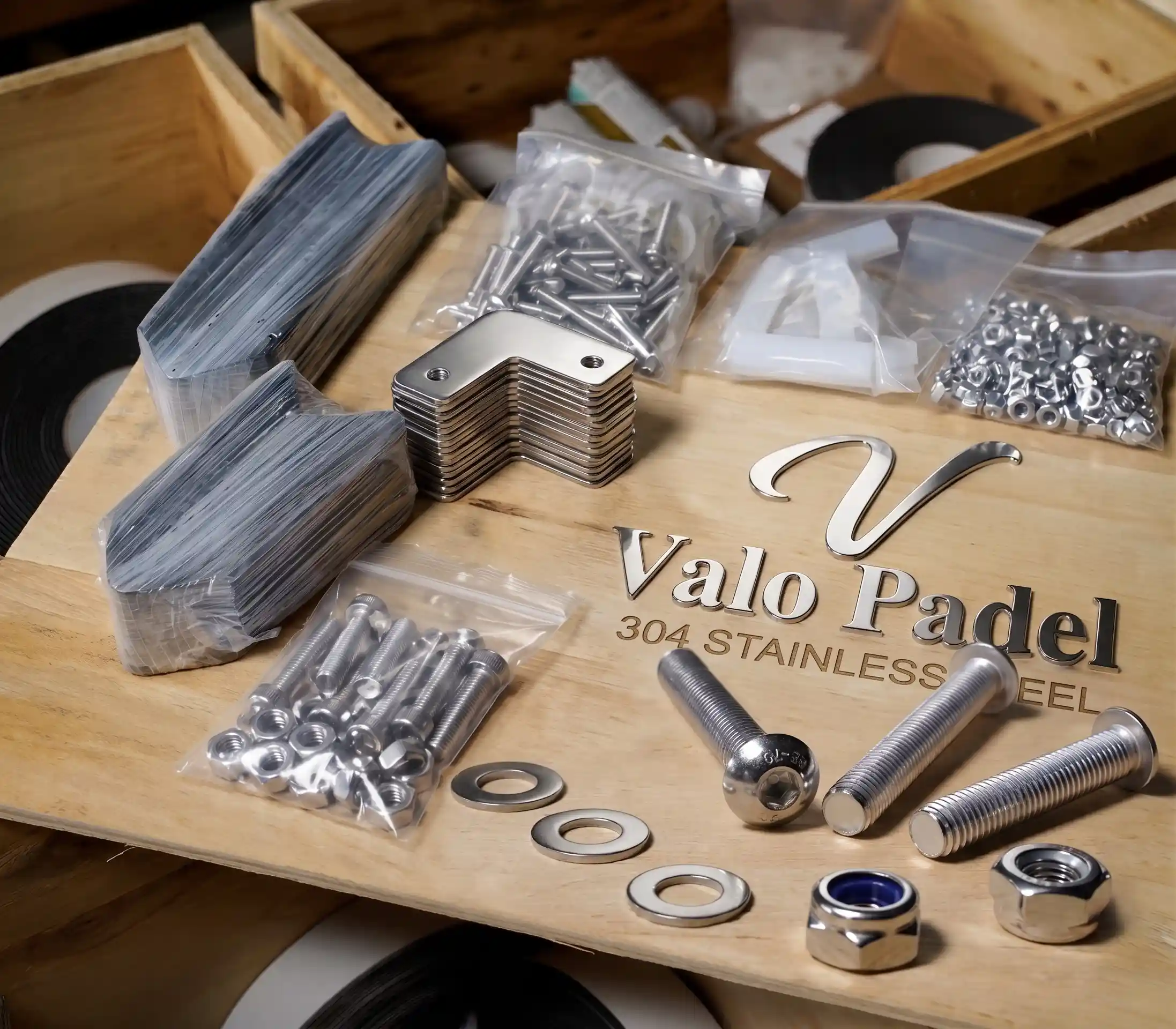

304 Stainless Steel Components
Commercial longevity in every detail.
From anti-corrosion fasteners to heavy-duty anchors, every hardware component is specified to lower long-term maintenance costs for high-frequency B2B club operations.

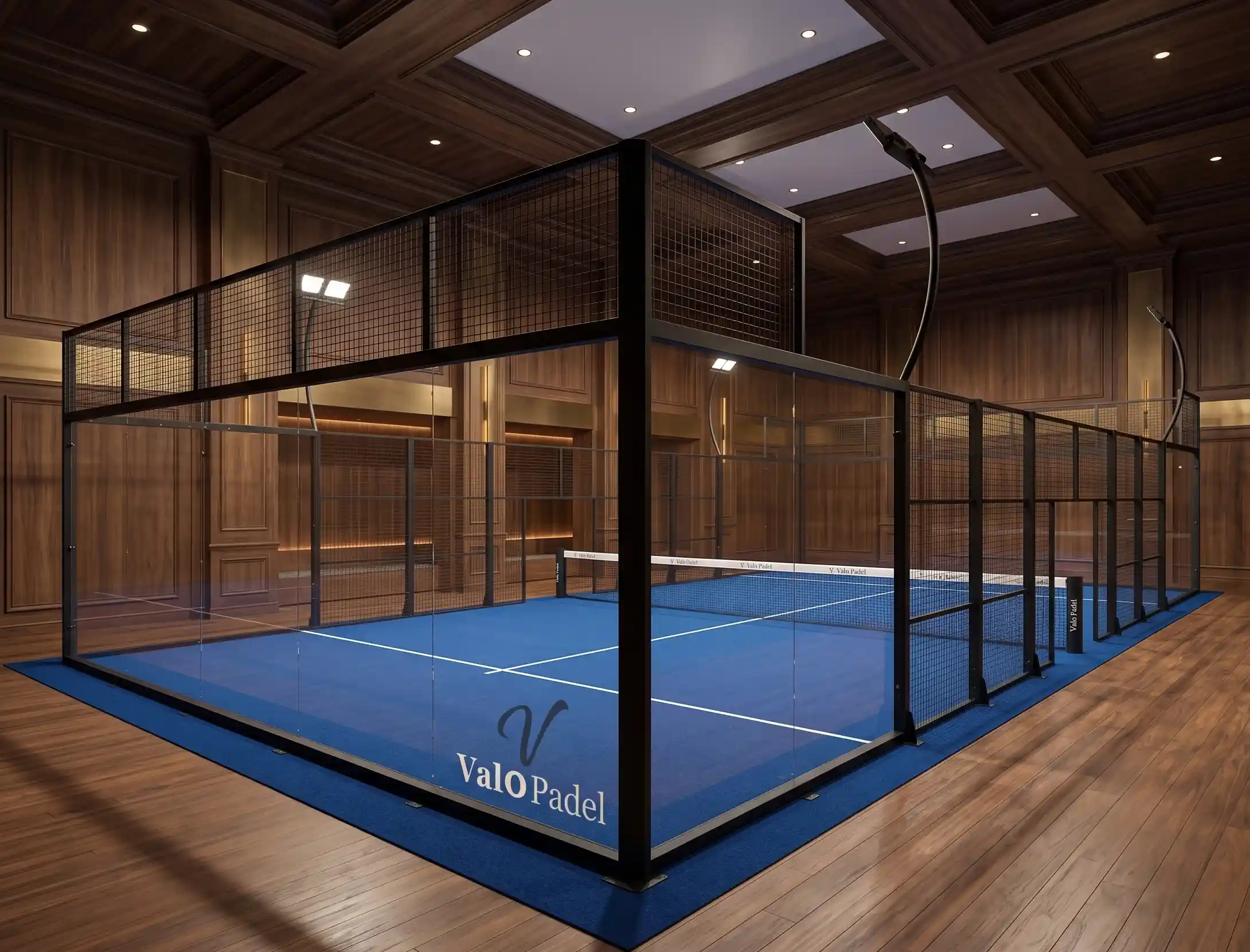

Flagship panoramic court system
The Signature Panoramic
Expansive viewing planes, disciplined Q235 steel engineering, and a refined architectural presence for premium clubs, resorts, and international sports venues.
The precision principle
Discipline down to the hardware.
Expansive Tournament Vision
A court made for professional play.
The classic panoramic framework provides robust structural stability while delivering broad, well-lit sightlines that complement high-end club aesthetics and broadcast requirements.
Engineering anatomy
Quiet structure, disciplined detail.
Q235 steel framework
A disciplined structural frame engineered for high-use club environments, long service life, and predictable installation tolerances.
Full-penetration welding
Precision fabrication and controlled welding practice help maintain structural continuity across the panoramic frame system.
Anti-corrosion treatment
Surface preparation and protective finishing are specified for export projects where climate, humidity, and maintenance cycles matter.

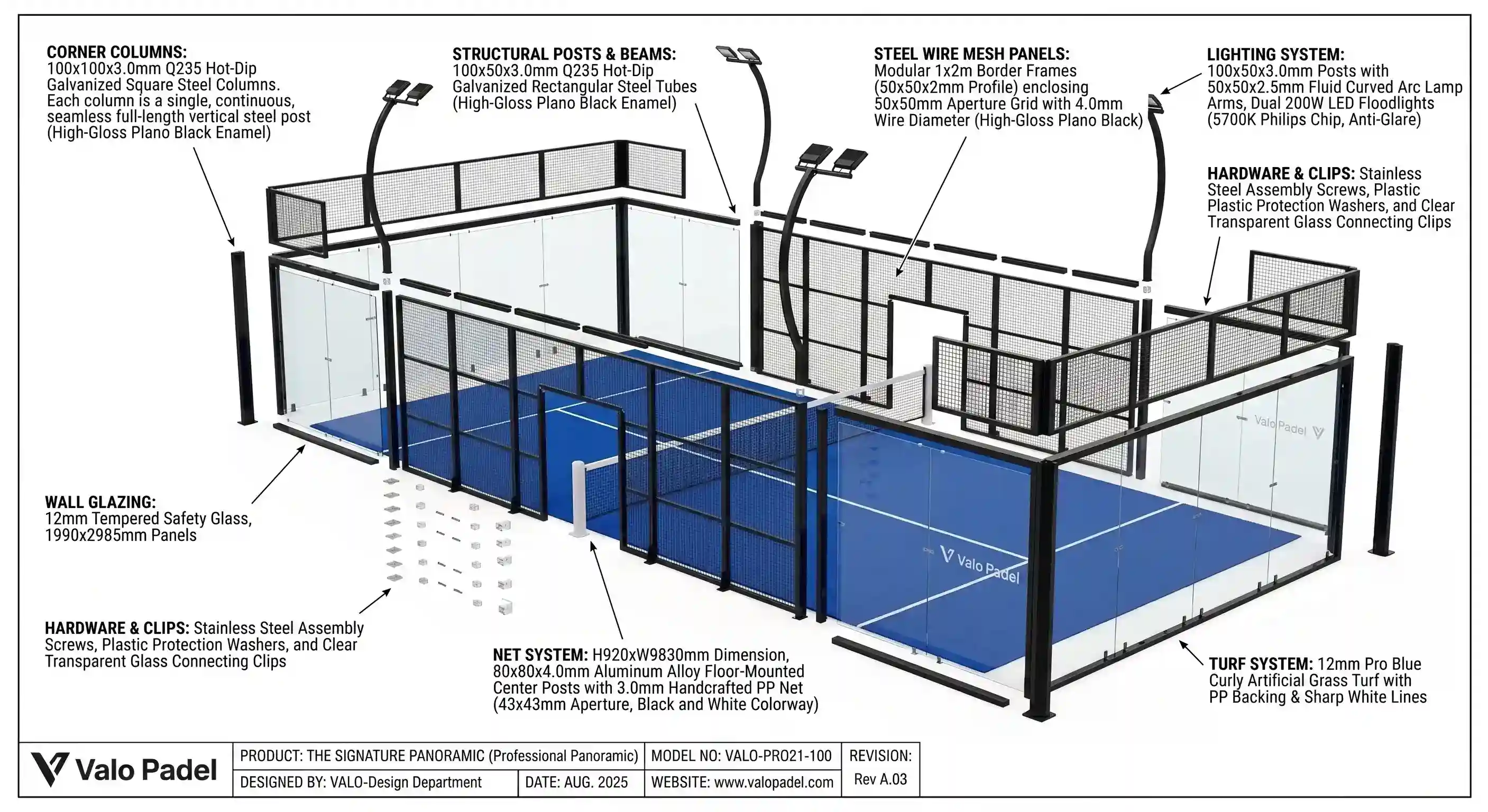

Structural Blueprint
Precision down to the millimeter.
Global Deployment
Engineering commitment shown through physical specifications.
Commercial-grade engineering data
Technical Specifications Matrix
The essential structural baseline for procurement teams, architects, and venue operators evaluating international deployment.
Main Steel Structure
Q235 hot-dip galvanized steel; 3.0mm thickness; corner columns 100 x 100 x 3.0mm and side columns 100 x 50 x 3.0mm.
Anti-Corrosion Process
Hot-dip galvanization, intensive shot blasting, and imported electrostatic polyester powder coating.
Glass System
18 panels of 12mm tempered safety glass.
Mesh / Fence
Q235 hot-dip galvanized steel mesh, 50 x 50mm aperture, 4.0mm wire diameter.
Lighting
8 x 200W anti-glare LED fixtures with Philips core chips and 5700K color temperature.
Turf System
12mm professional texturized turf, 40,000 clusters/sqm, engineered for stable silica-sand retention.
Hardware
Rust-proof aluminum alloy net posts, 80 x 80 x 4.0mm; PP net with 3.0mm cord diameter.
For serious B2B buyers
Request the technical specification package.
Consult with the Hong Kong commercial team and Foshan engineering supply chain to review quantities, foundation conditions, export packaging, and delivery schedules.
Available on request
- 01Technical specification PDF
- 02Glass, steel, and coating details
- 03Export packaging and lead-time consultation
